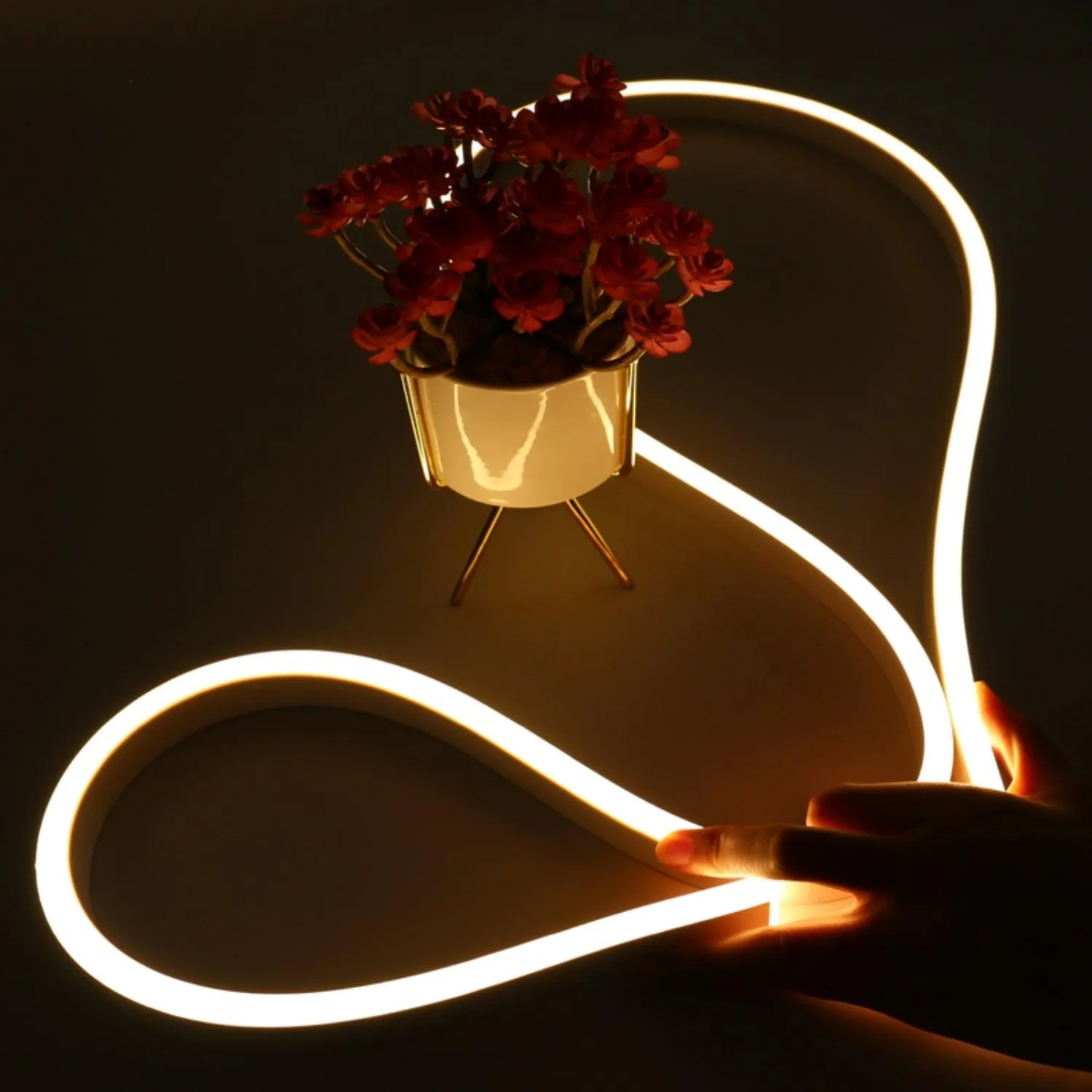

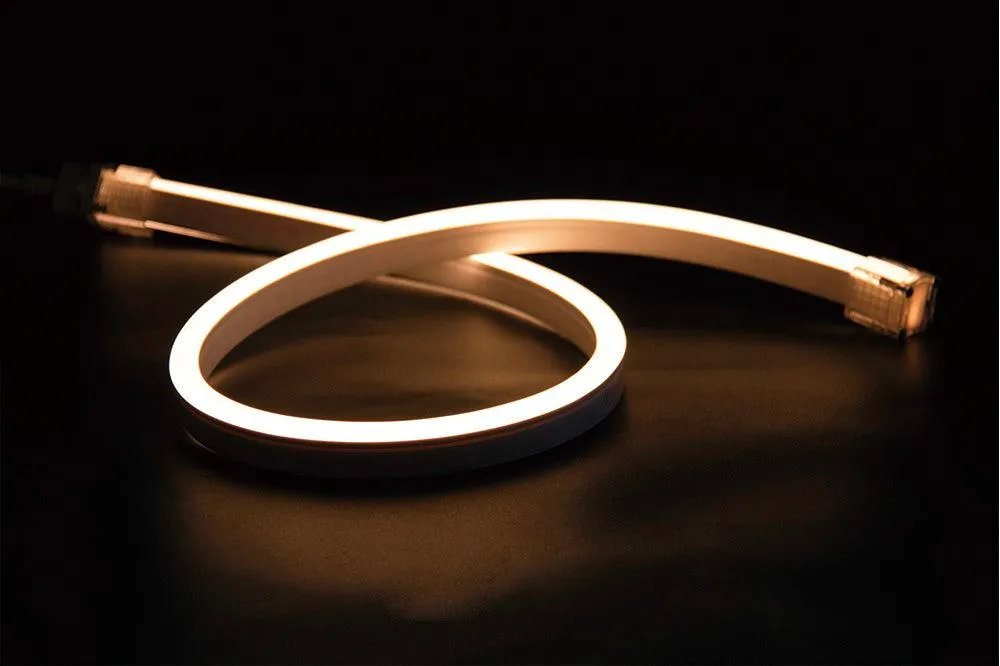

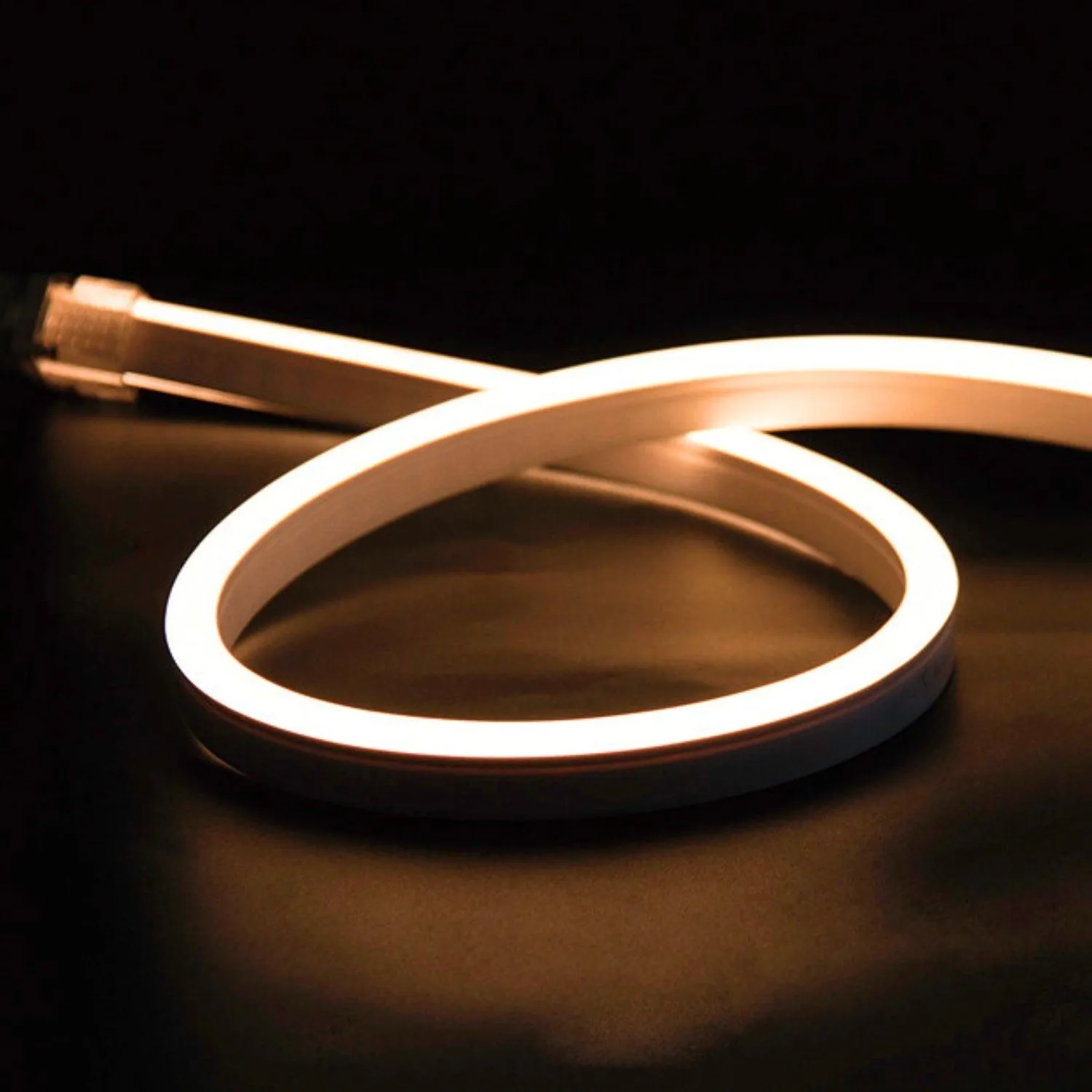

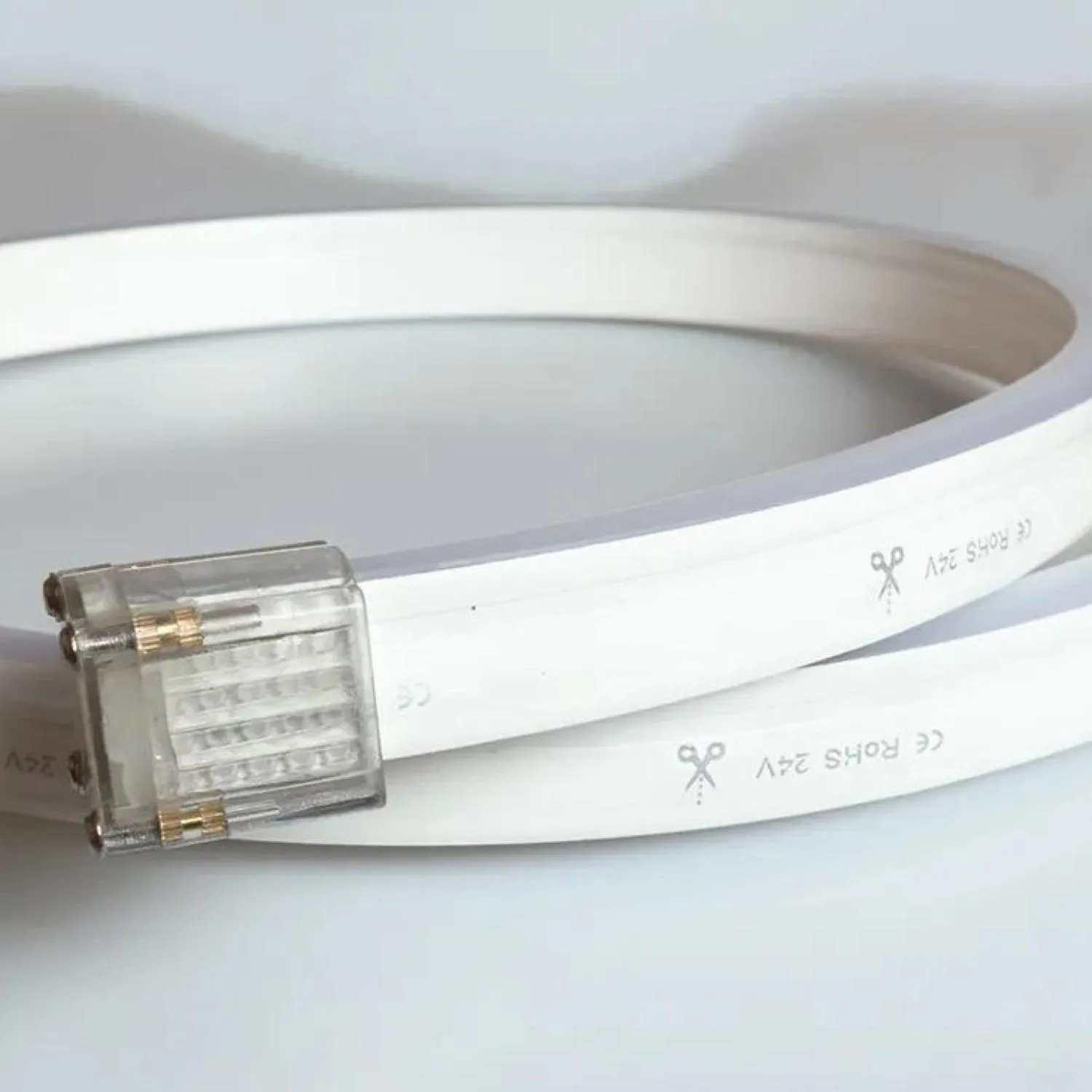

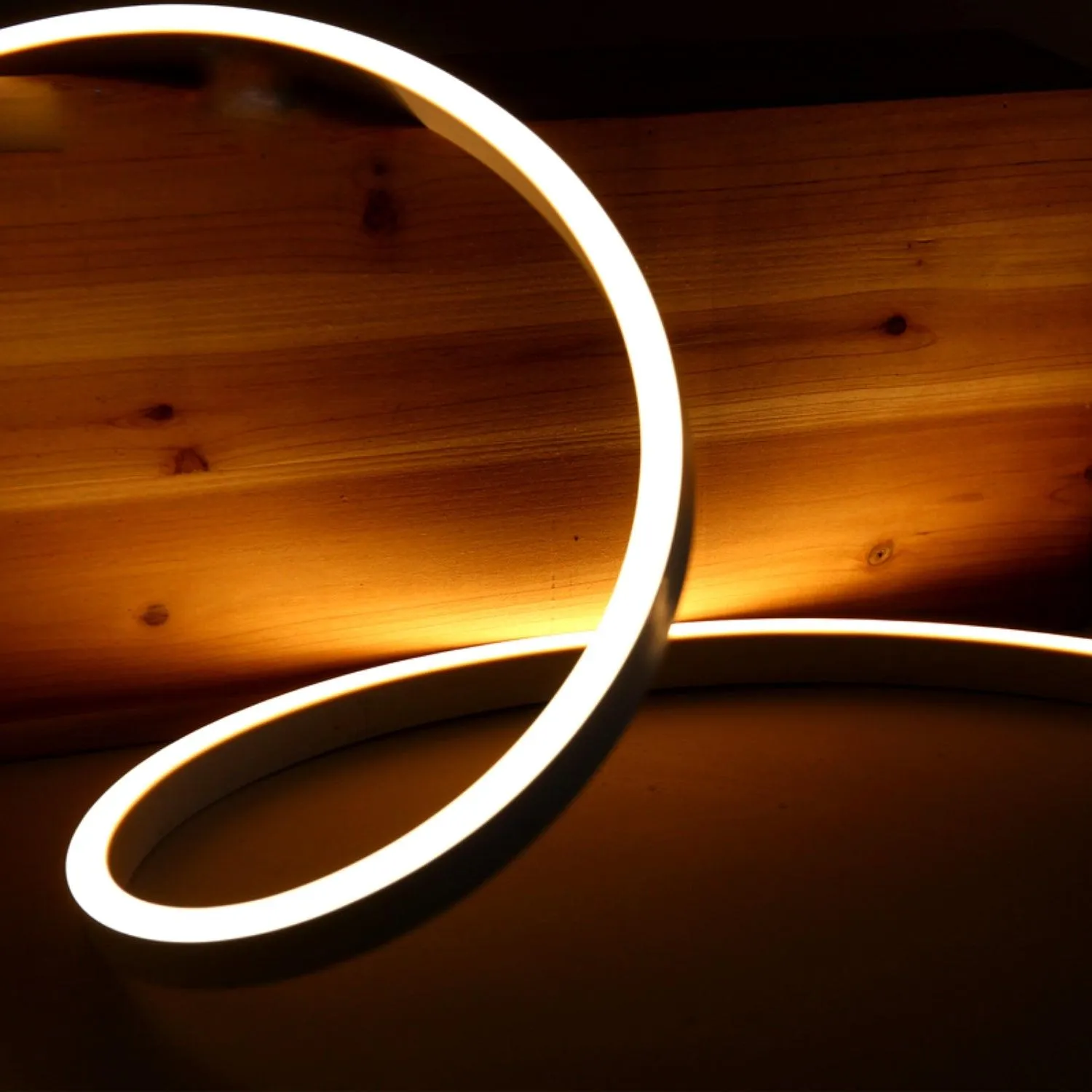

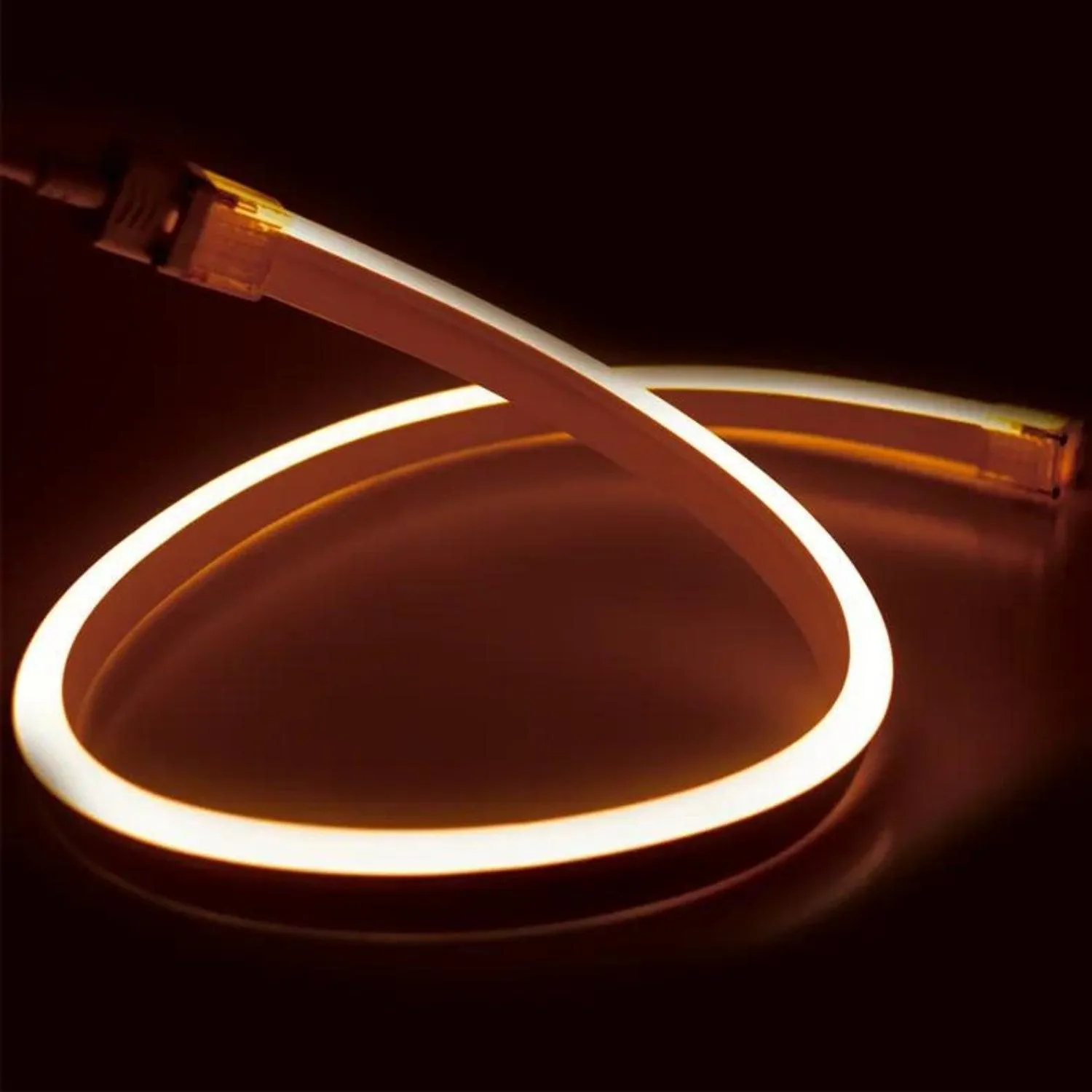

Our high-quality Warm White (2800K) is horizontal bending, emitting a bright warm white LED light from the top of the flex. Our LED neon flex is a low voltage, compact, highly flexible, Pixel-free, Linear lighting solution. The lights are made for premium quality Epistar LEDs.

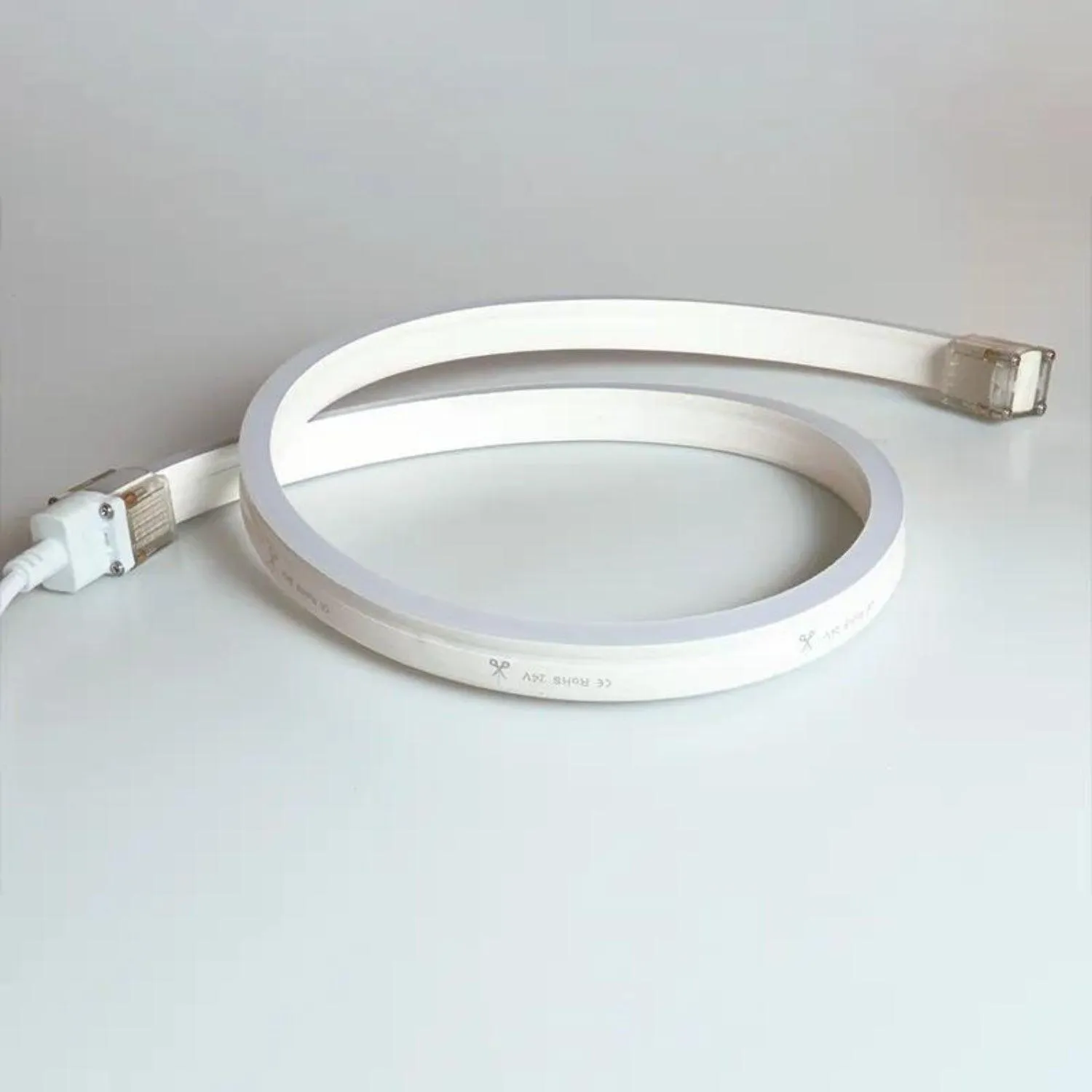

The Neon Flex comes with a 3 Metre Extension cable to connect it to the power source.

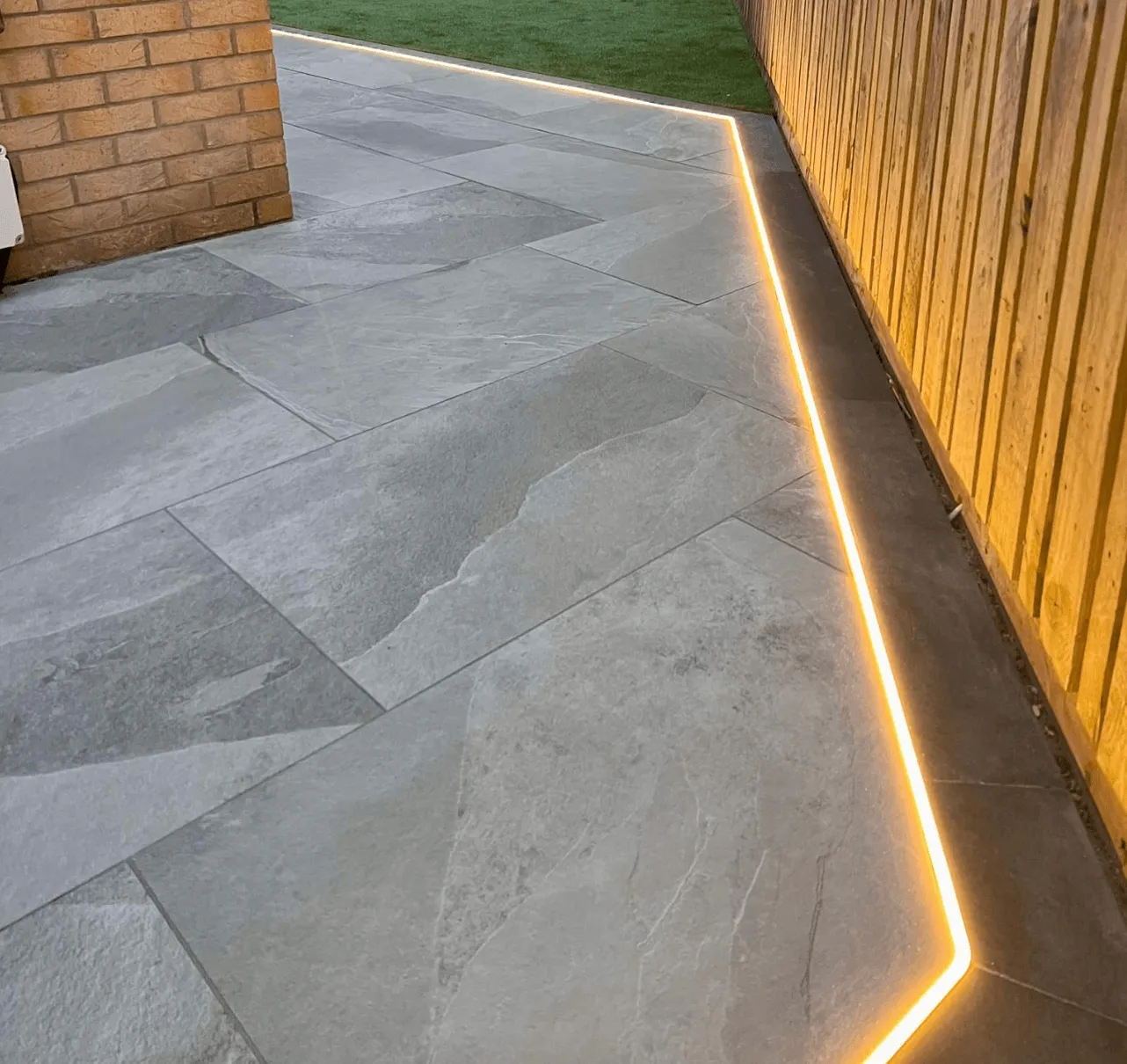

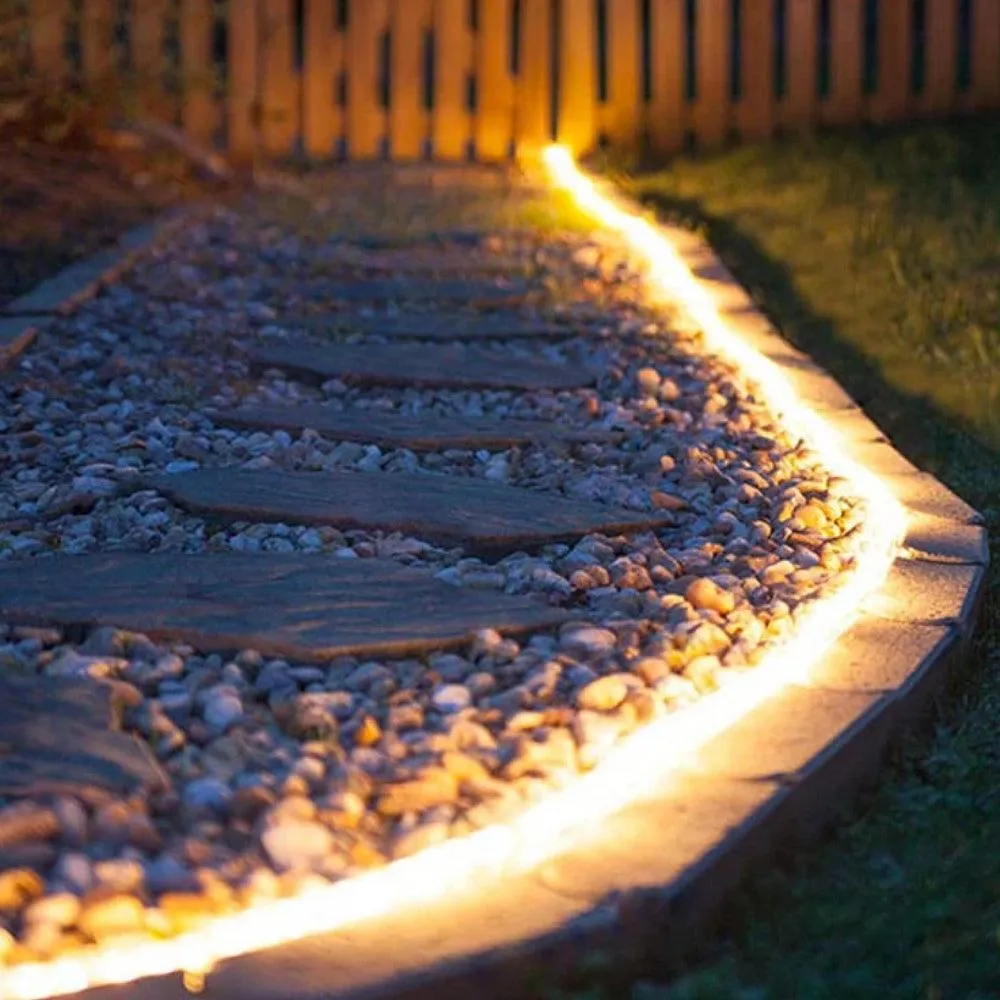

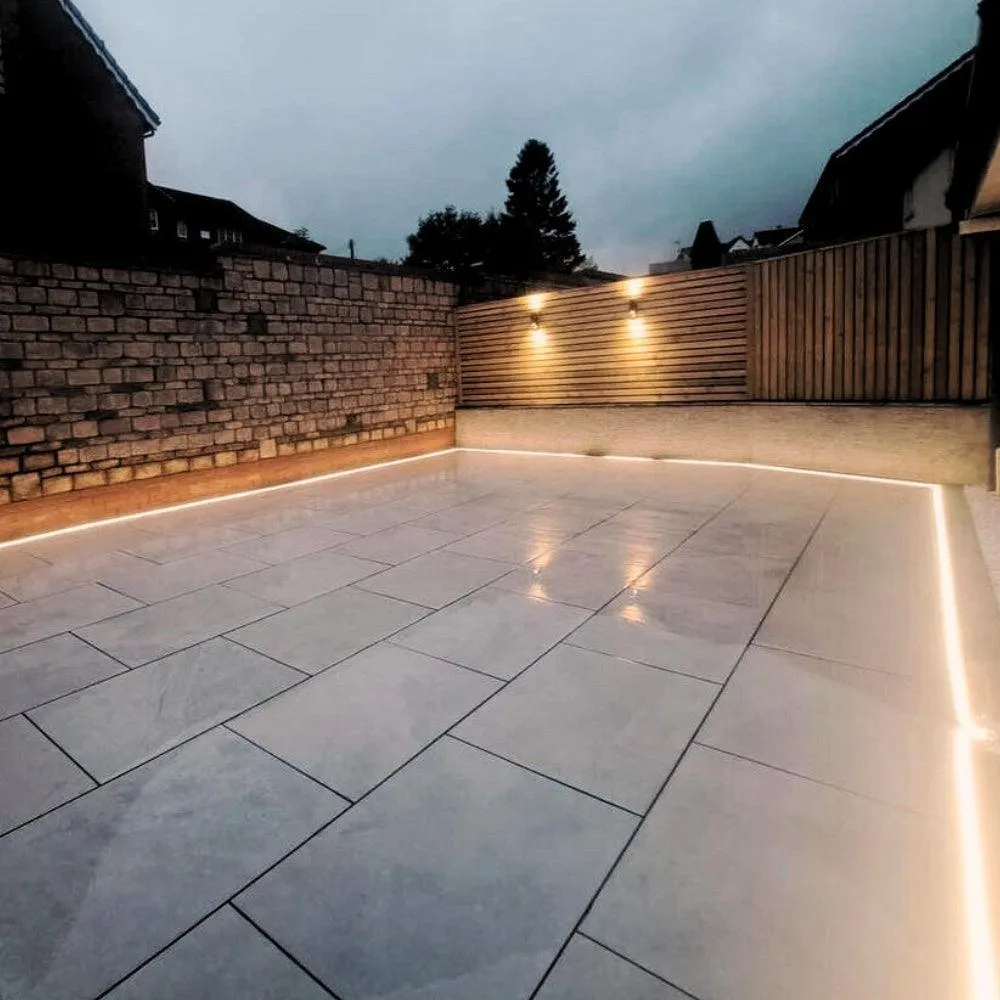

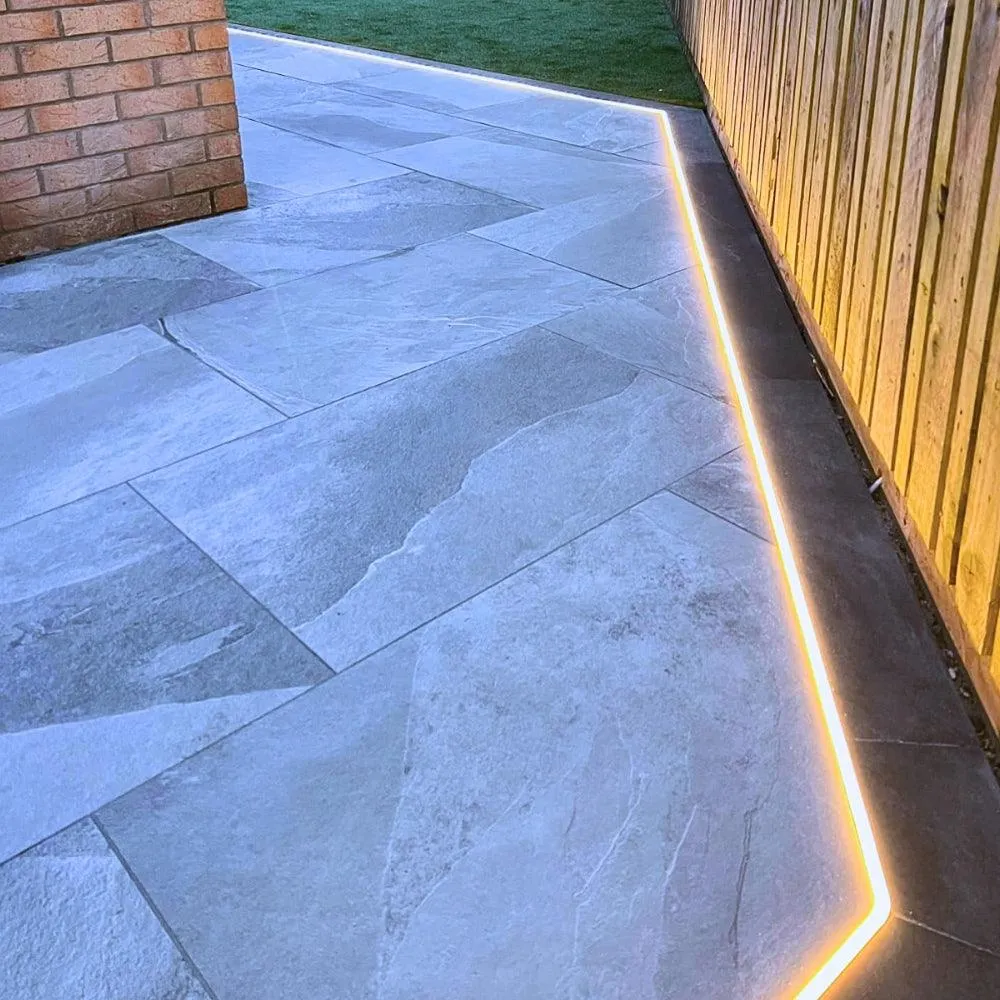

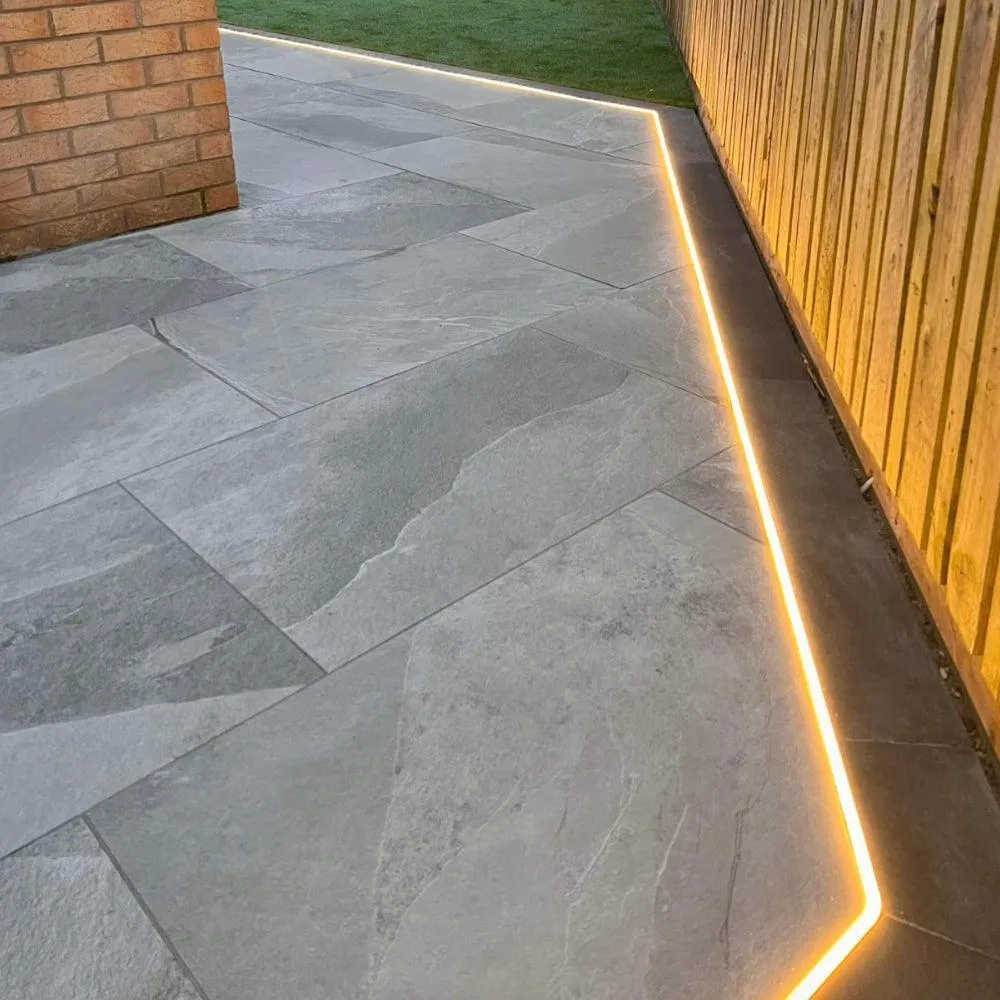

Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications requiring a neon light.
The IP68 rating offers protection against
- UV radiation
- Fully Waterproof
Features:
- The advantage of bespoke products is that you can specify exactly what you need. We can have custom lengths of LED Neon made by the factory if required. When you have the Neon custom-made, there is more choice of single lengths (up to 20m long).
Specification for LED Strip:
- Working Voltage: DC 24V
- Light Colour: Warm White 2800K
- LEDs: 2835 SMD
- Cutting: 12.5cm
- Standard Packing: 1m to 20m Continuous Length
- Strip Backing: White
- Waterproof Rating: IP68 Fully Waterproof
- Working Temperature: -20-60 degree

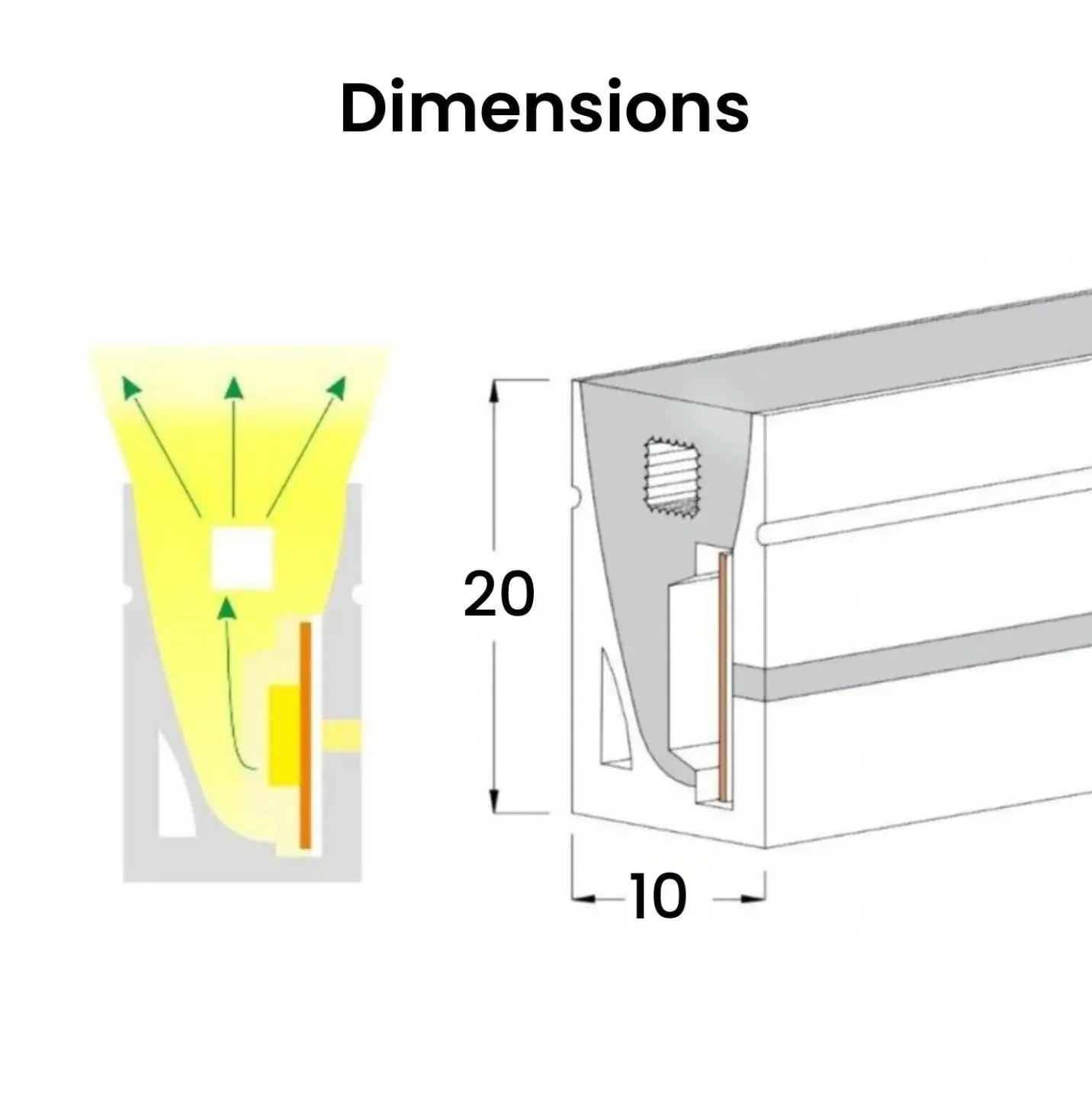

- LED Neon Flex Dimension: 10 x 20mm
- Power: 9 W/Meter
- Extension Lead: 3 Metre Extension Lead
- LED Chip: Epistar
- Warranty: 3 Years
Important Note:
To power more than 20 metre you would have to feed both the ends of the neon flex. Up to 20 metre you can power it from one end. If the total length is more than 20 metre then you need to power the led neon flex from both the ends and you are going to need another End Cap with wire to power the neon flex from both ends to avoid voltage drop.
Link:
Package Contents:
LED Neon Flex Only
Power Supply Needed: DC 24V Power Supply
1 Metre Length : DC 8W
Upto 5 Metre Length : DC 24V 50W
Upto 10 Metre Length: DC 24V 100W
Upto 15 Metre Length: DC 24V 150W
Upto 20 Metre Length: DC 24V 200W
Installation:

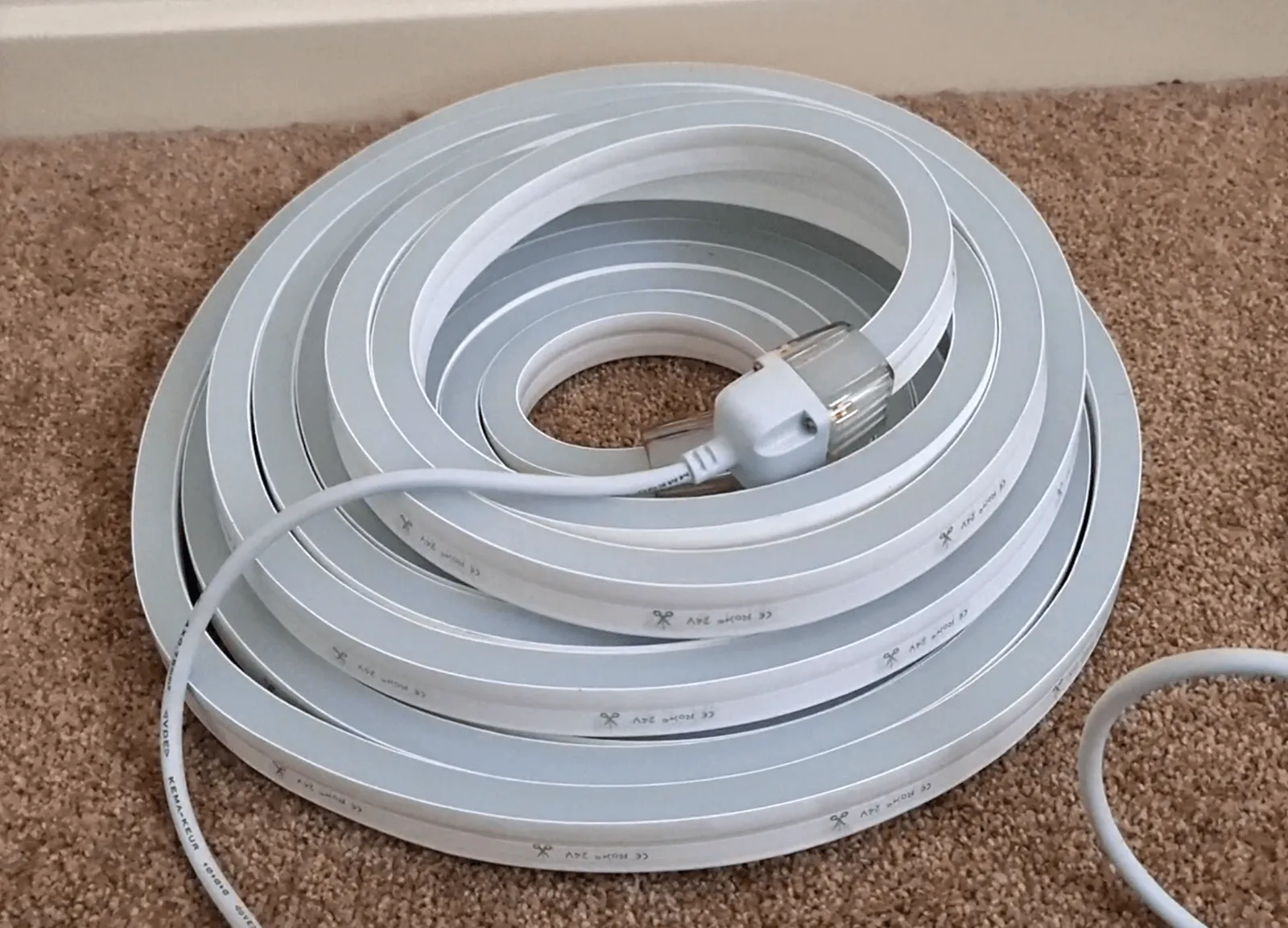

The led neon flex is cut from a 50 metre roll so if you order more than 1 metre you will receive the lights in one continuous length. Please note that the light is custom custom as per your required length from a 50 metre roll so it is non returnable or refundable once cut.
Product Specification:
| Product Code: | NFWWIP6824V-1020 |
|---|---|
| Manufacturer | ATOM LED |
| Product Type | LED Neon Flex |
| Colour | Warm White 2800K |
| IP Rating | IP68 Fully Waterproof |
| LED per mtr | 100 p/Mtr |
| Metres | 1m to 20 |
| Guarantee Period | 3 Years |
| LED Chip | 2835 |
| Material | PVC - Silicone |
| Voltage: | DC 24v |
| Brightness | High Brightness |
| Adhesiveness | Non-Self-Adhesive |
| Full Roll | 20 Metre |
| Size: | 10x20mm |
| Power | 9W/ M |
| Beam Angle: | 120 degree |
| LED Spacing | 7cm |
| LED Cut | Cuttable 10cm |
| Lumens P/Mtr | 700lm |
| Dimmable: | Yes (Need Dimmer) |
| Cutting | 12.5cm |
| Continuous run | 20 metres |
| Average LED life Hrs: | 30,000 |
| CE and RoHS: | Yes |
